Product Description

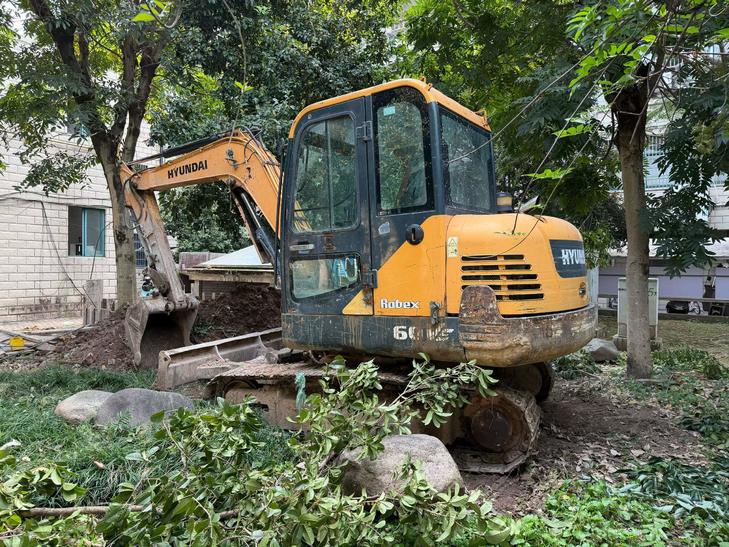

Well-maintained 2017 Hyundai R 60VS mini excavator available from Zhejiang, China. This compact machine comes from its original owner with a documented single-owner history, ensuring transparent maintenance records and reliable operational background.
The Hyundai R 60VS is designed for versatility in tight spaces while delivering consistent performance across urban construction, landscaping, and utility projects. Its compact footprint makes it ideal for confined jobsites without sacrificing digging capability.
- Year of Manufacture: 2017
- Model: Hyundai R 60VS
- Ownership: First owner, local operation
- Location: Zhejiang Province, China
- Condition: Used, operational
This unit represents a cost-effective solution for contractors seeking dependable equipment with verified provenance. Inspection welcome. Suitable for immediate deployment on active projects.
| Specifications | Value |
|---|---|
| No. | 1170464 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV98 |
| Rated power (kw/rpm) | 54.3 / 2400 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 (3.86 ") x 110 (4.33 "). |
| Maximum torque (N.m) | 20.6 / 1800 |
| Displacement (L) | 3.319 |
| Working form | 4 cylinder 4 stroke water cooled direct injection engine |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 4.0 / 2.2 |
| Maximum flow of main pump (l/min) | 2 x 55 |
| Traveling Hydraulic Circuit (Mpa) | 220 |
| Rotary Hydraulic Circuit (Mpa) | 220 |
| Main pump type | Two variable plunger pump |
| Working Hydraulic Circuit (Mpa) | 220 |
| Pilot Oil Circuit (MPa) | 30 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-80 x 50 x 660 (3.1 "x 26.0") |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-90×55×850 (3.5 "×33.5") |
| Boom cylinders - Number × diameter × stroke (mm) | 1-110×65×715 (4.3 "×28.1") |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 70 |
| Engine Oil changes (L) | 12 |
| Coolant (L) | 10 |
| Hydraulic System (L) | 120 |
| Total transport length (mm) | 5900 |
| Total transport width (mm) | 1920 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 2550 |
| Counterweight ground clearance (mm) | 690 |
| Minimum ground clearance (mm) | 380 |
| Back end turning radius (mm) | 1650 |
| Onboard width (mm) | 1830 |
| Total track length (mm) | 2530 |
| Track gauge (mm) | 1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1990 |
| Maximum height at minimum turning radius (mm) | 2350 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 40 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3820 |
| Maximum excavation height (mm) | 5780 |
| Maximum unloading height (mm) | 4050 |
| Maximum vertical digging depth (mm) | 3200 |
| Maximum excavation radius of stop surface (mm) | 6010 |
| Maximum effective digging depth (mm) | 3420 |
